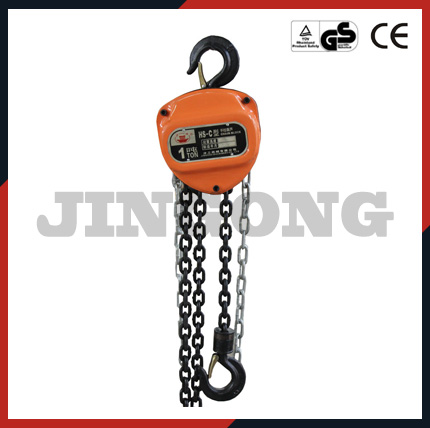

HSZ-VC Series Chain Hoist

Details
  1. Safe, reliable and durable

    2. High performance, easy to use and maintain

    3. Small in volume, portable

    4. Reasonable structure, reposefully running and beautiful appearance.



                   Model                   VC-0.5A                   VC-1A                   VC-1.5A                   VC-2A                   VC-3A                   VC-5A                   VC-10A                   VC-20A                   VC-30A                   VC-50A
                   Capacity Load(t)                   0.5                   1                   1.5                   2                   3                   5                   10                   20                   30                   50
                   Standard Lift(m)                   2.5                   2.5                   2.5                   3                   3                   3                   3                   3                   3                   3
                   Running test load(kn)                   7.5                   15                   22.5                   30                   45                   62.5                   125                   250                   375                   625
                   Max Force (n)                   200
(20.5)
                   320
(32.5)
                   360
(36.5)
                   365
(37)
                   385
(44.3)
                   435
(44.3)
                   435
(44.3)
                   435*2
(44.3*2)
                   435*2
(44.3*2)
                   435*2
(44.3*2)
                   Load Chain Diameter No.of Falls(mm)                   6.0*1                   6.0*1                   8.0*1                   8.0*1                   8.0*2                   10.0*2                   10.0*4                   10.0*8                   10.0*12                   10.0*22
                   xtra Weight  of Extrea Per Metter(kg)                   32                   40                   72                   72                   144                   158                   316                   63.6*2                   948*2                   1738*2
                   Net Weight (kg)                   8.4                   11                   16.2                   18.5                   25.6                   42.8                   79.5                   193                   220                   1092
                   Extra weight meter of extra lift(kg)                   1.7                   1.7                   2.3                   2.3                   3.7                   5.6                   9.7                   19.4                   26.4                   48.4
                   Dimensions(mm)                   A                   131                   140                   161                   161                   161                   186                   207                   215                   350                   406
                   B                   127                   158                   187                   187                   210                   253                   398                   650                   680                   962
                   C                   270                   317                   399                   414                   465                   636                   798                   890                   1380                   2578
                   D                   35                   40                   45                   50                   58                   64                   85                   110                   110                   170
                   K                   30                   34                   38                   41                   48                   52                   64                   85                   85

                        130

                   Packing Measurement (L*W*H)(cm)                   22*
15*19.5
                   28*
18*19.5
                   28*
21*24
                   28*
21*24
                   32*
21*26
                   40
*21*21
                   64*
21*21
                   64*
38*64
                   72*
50*68
                   110*
100*130
