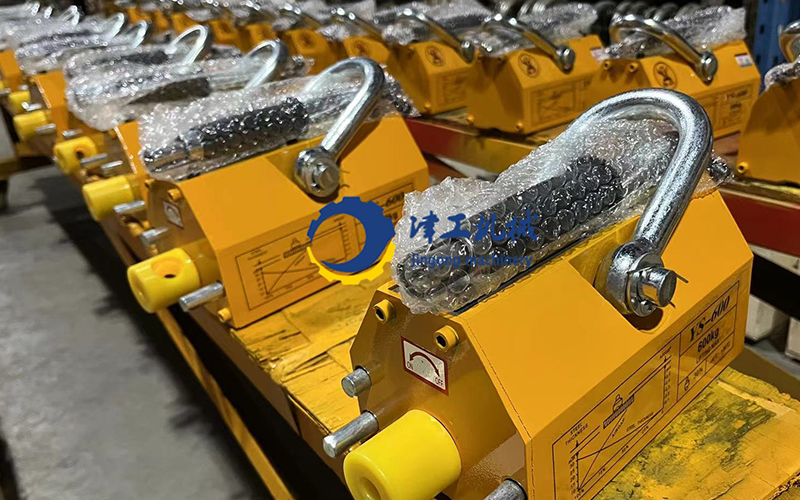

Characteristics :simple and convenient, legerity, strong, permanent energy and reliable. No matter in the heavy industry or the light industry, the JG series permanent magnetic lifter is always the equipment that can’t be lacked. They are simple and safe in use.
Safty factor 3:1
The lifting capacity of the permanent magnetic lifter is incated as 1/3 of the test load, for example, the lifting capacity is 100kg,but hte brdakaway froce is 300kg,to assure the safe operate.
Range of application:apply to carry the steel plate,iron block and cylinder iron material,such as the machine spare parts, punch sharper, plastic sharper and all kinds of iron steel material.
Specification：
| Type | Rated Lifting Capacity (kg) | Dimension L*W*H(cm) | Max Breakaway Force （kg） | Net Weight（kg） |
Gross Weight （kg） |
| JG-100 | 100 | 25*16*16 | 300 | 3 | 4 |
| JG-400 | 400 | 32*20*17 | 1200 | 10 | 11 |
| JG-600 | 600 | 37*23*21 | 1800 | 20 | 22 |
| JG-1000 | 1000 | 43*28*24 | 3000 | 37 | 40 |
| JG-2000 | 2000 | 52*30*31 | 5000 | 68 | 74 |
| JG-3000 | 3000 | 60*30*31 | 7500 | 87 | 93 |
| JG-4000 | 4000 | 68*30*41 | 10000 | 113 | 121 |
| JG-5000 | 5000 | 73*40*48 | 12500 | 198 | 213 |
